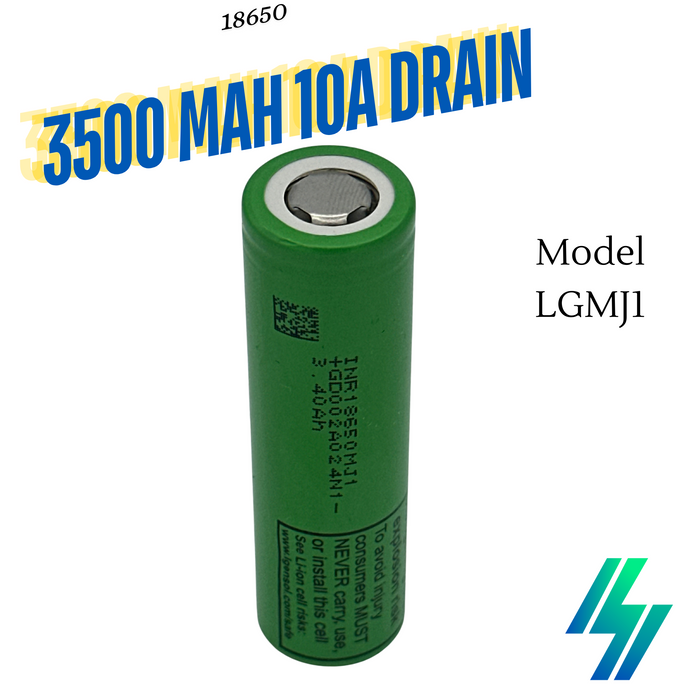

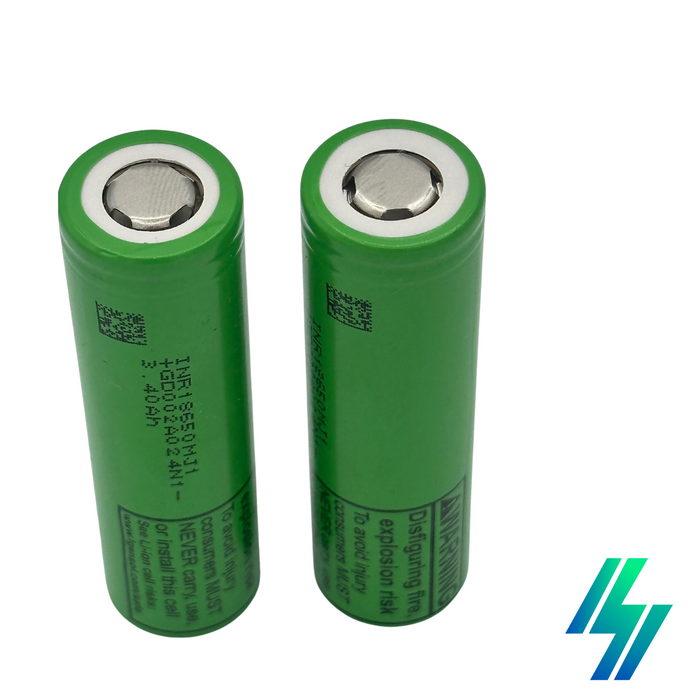

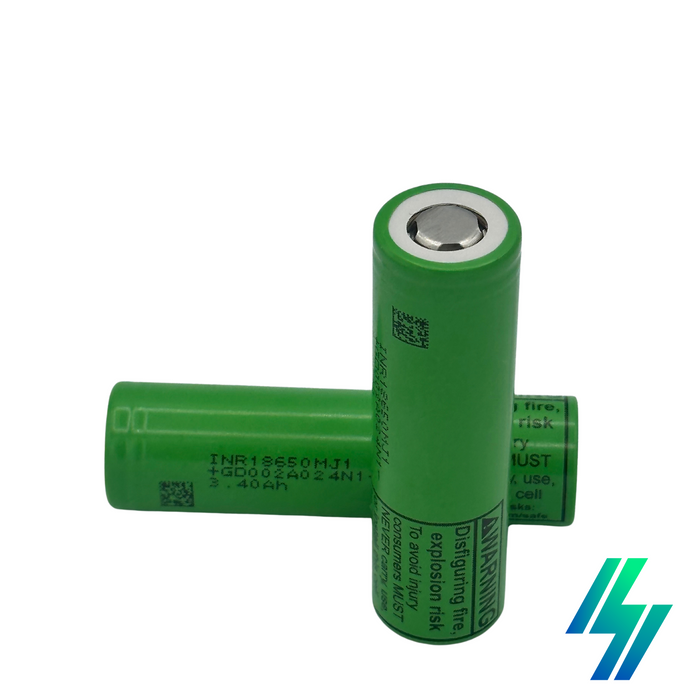

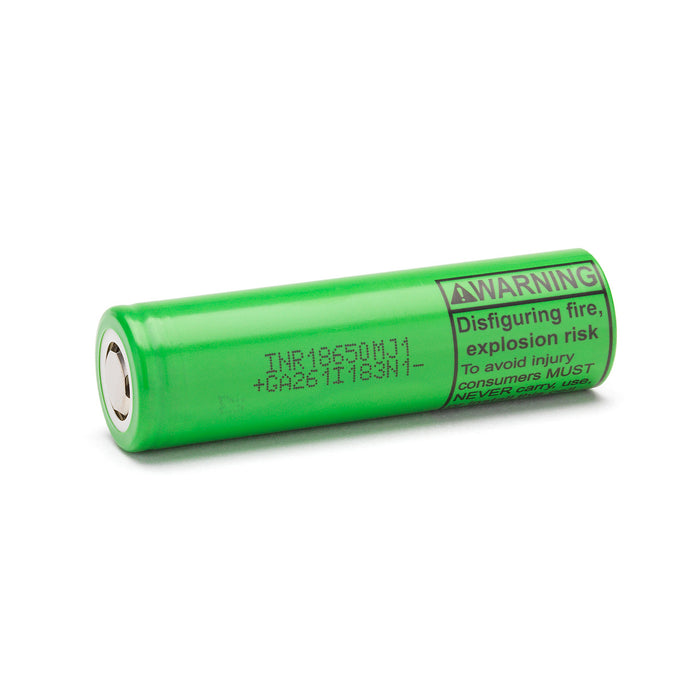

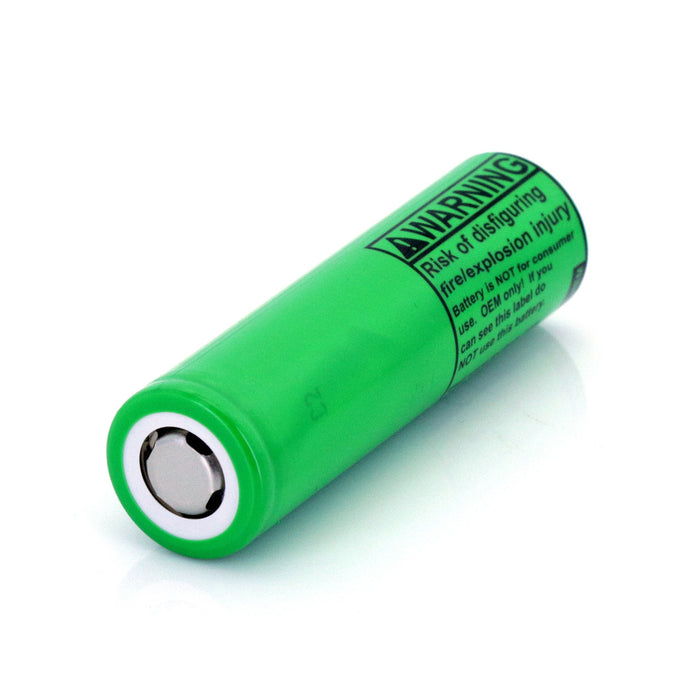

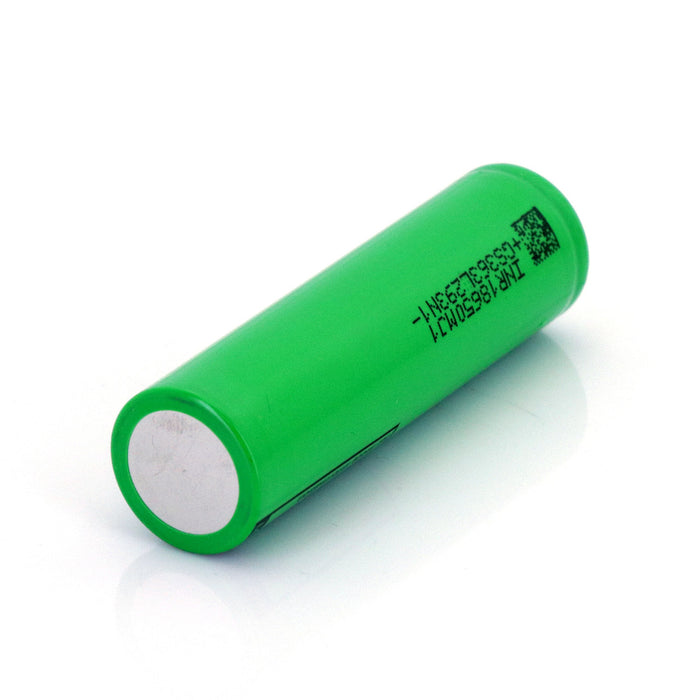

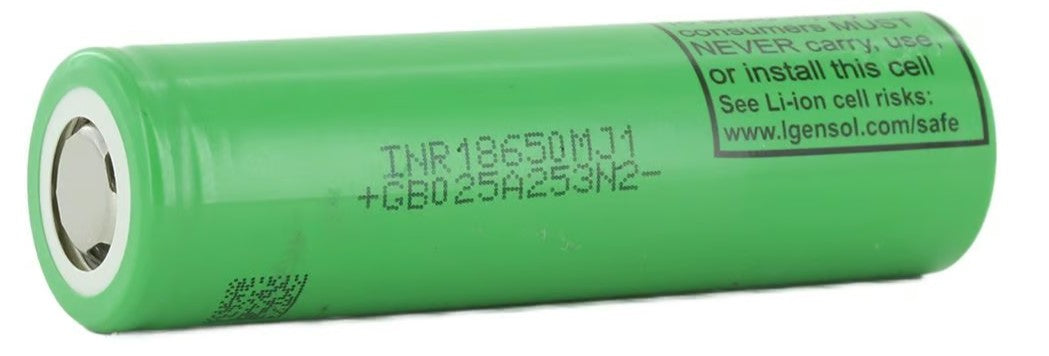

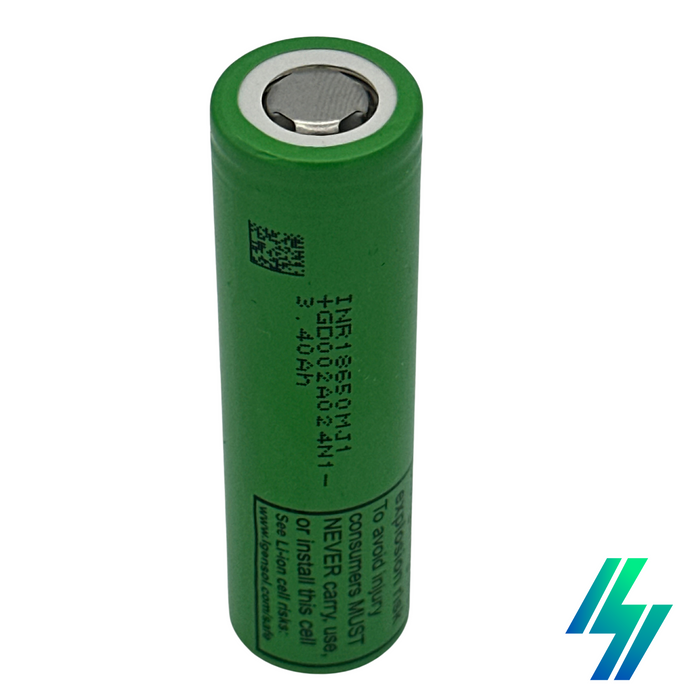

LG MJ1 Battery Cell

Superior Quality for Low-Medium Amp Applications

Specifications

The LG MJ1 is an excellent choice for low-medium amp (10A) battery packs and applications, offering extremely high capacity. This cell is not suitable for high drain applications such as e-cigs, vaporizers, or similar devices. However, it excels in delivering a solid 10A max continuous discharge with a capacity of 3500mAh and can handle up to 15A manufacturer pulse rating.

LG MJ1 Specifications

• Size: 18650
• Diameter: 18.6mm
• Length: 65.3mm
• Brand: LG
• Capacity: 3500mAh
• Standard Discharge Capacity: 3450mAh
• Max Continuous Discharge Current: 10A
• Max Discharge Current (Pulse): 15A
• Nominal Voltage: 3.6V
• Peak Voltage: 4.2V
• Protected: No

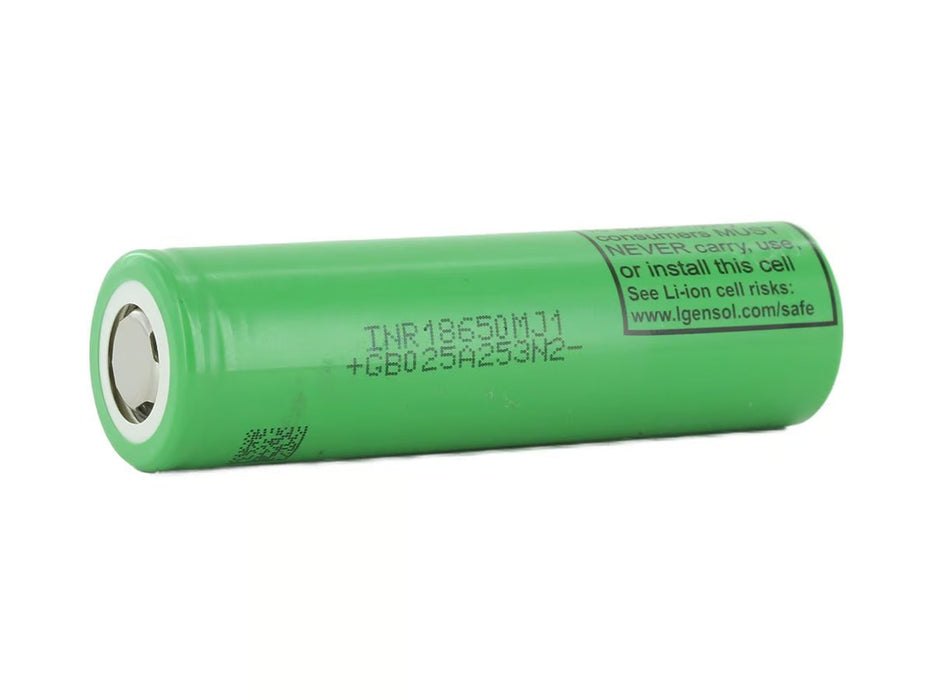

• Style: Flat Top
• Color: Green
• Origin: South Korea

For more detailed specifications, refer to the full LG MJ1 datasheet.

Specification Sheet

LGMJ1 Specifications

Safety Guide

Battery Safety Sheet

Material Safety Data Sheet

Certification sheets

UL Certification

IEC Certification

UN 38.3 Certification
