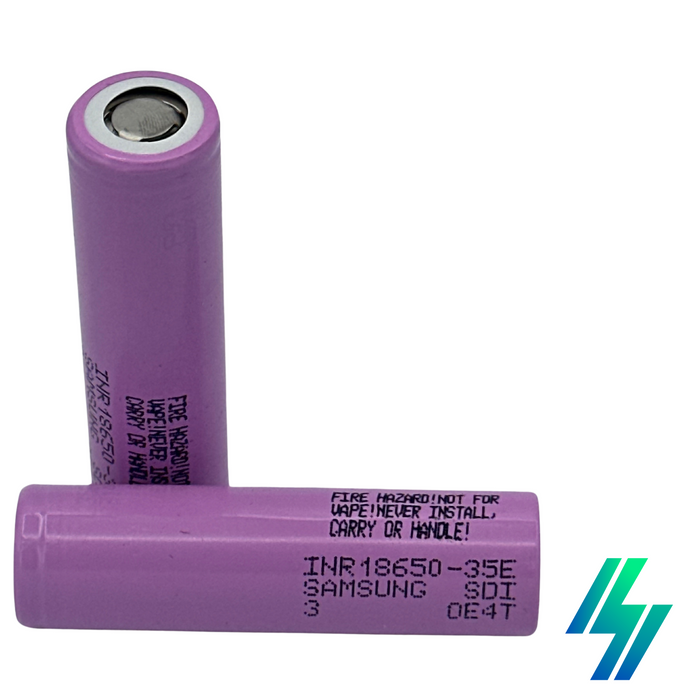

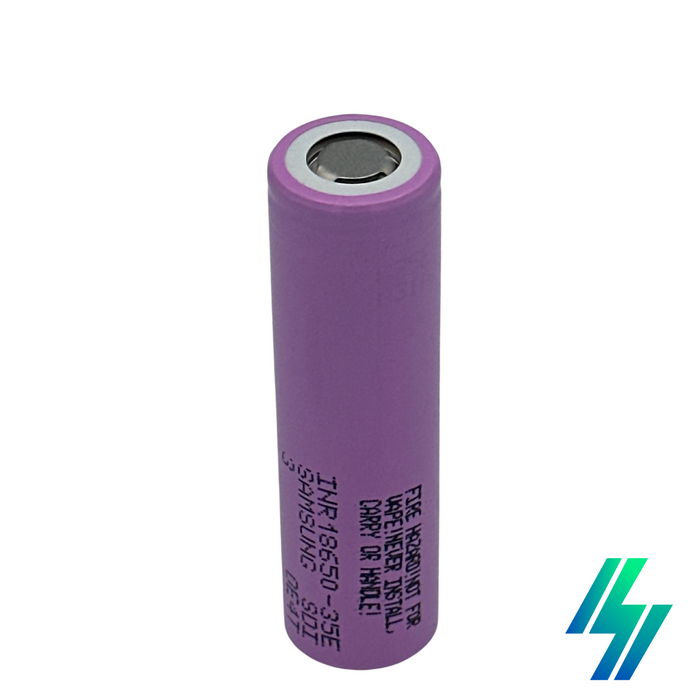

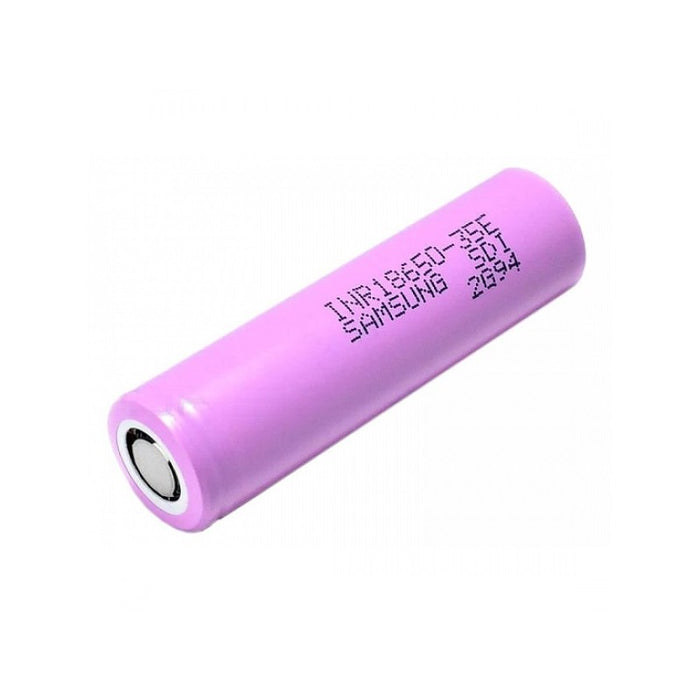

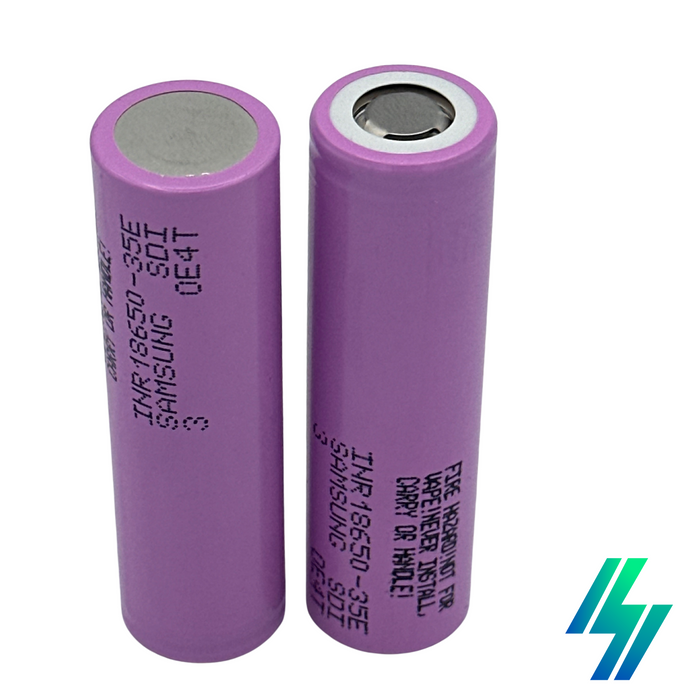

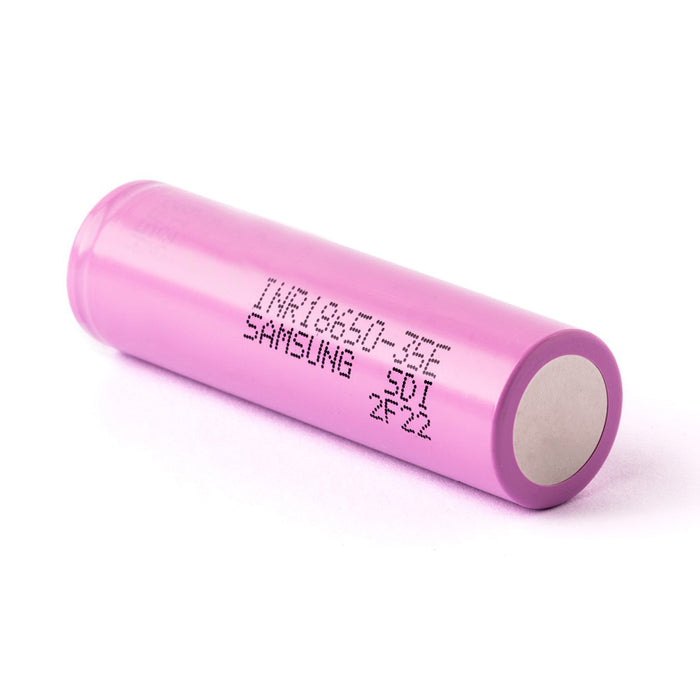

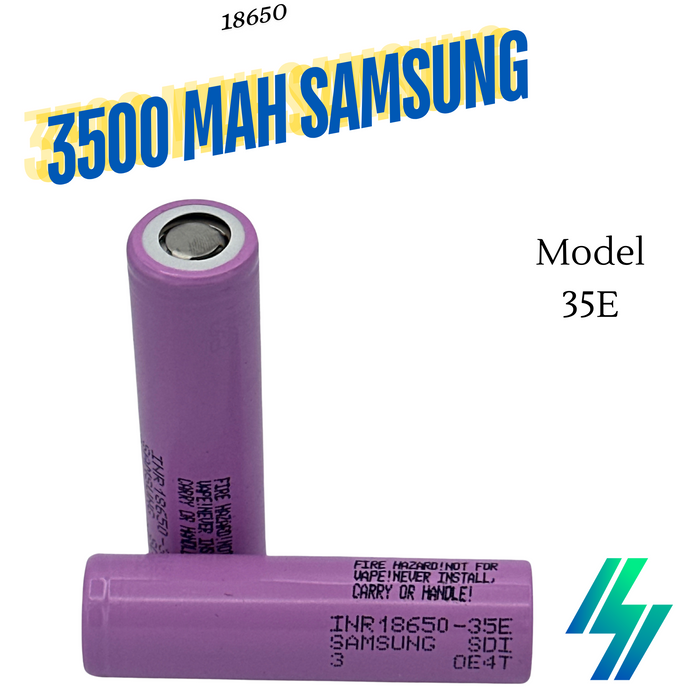

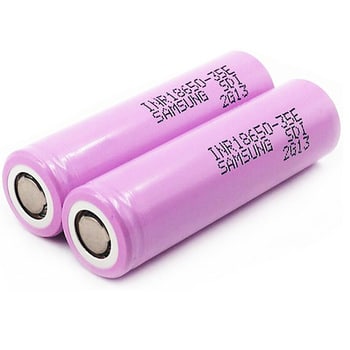

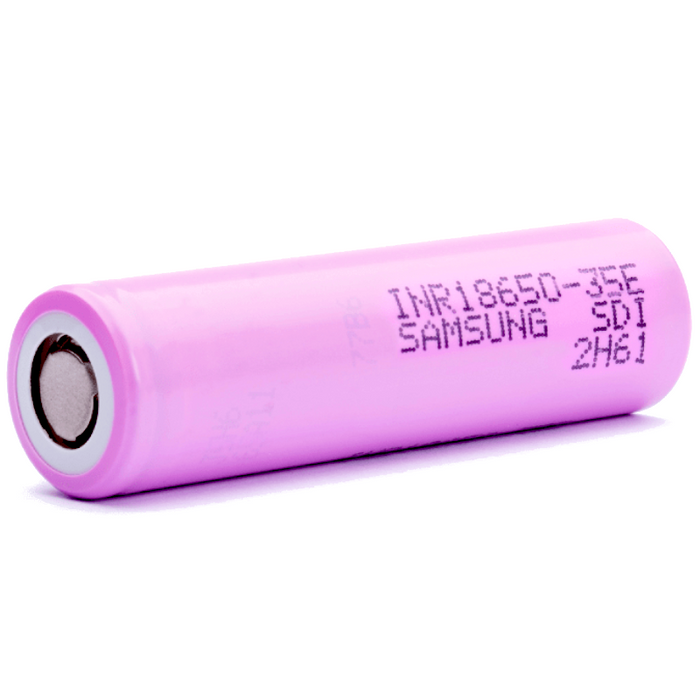

Samsung 35E | Lithium Ion Cell 3500mah Cell



The 35E is a superior cell for the low-medium amp, extremely high capacity battery packs, and applications.

The low continuous rating on this battery makes it NOT APPROPRIATE FOR USE IN HIGH DRAIN APPLICATIONS (e-cigs, vaporizers, or similar), but this is an exceptional 3500mAh cell that offers a solid 8A max continuous with 3500mah, and up to 13A manufacturer pulse rating.



  • Size: 18650
  • Approximate Diameter: 18.6mm
  • Approximate Length: 65.3mm
  • Brand: Samsung
  • Manufacturer Rated Capacity: 3500mAh
  • Manufacturer Rated Standard Discharge Capacity: 3350mAh
  • Manufacturer Rated Max Continuous Discharge Current: 8A
  • Manufacturer Rated Max Discharge Current (not continuous):  13A
  • Nominal Voltage: 3.6V
  • Peak Voltage: 4.2V
  • Protected: NO
  • Style: Flat Top
  • Color: Pink
  • Origin: South Korea
  • Full Samsung INR1865-35E datasheet link


Item Specification
3.1 Standard discharge Capacity Min 3,350mAh
- Charge : 0.5C(1,700mA), 4.2V, 0.02C(68mA) cut-off @RT
- Discharge : 0.2C(680mA), 2.65V cut-off @RT
3.2 Charging Voltage 4.2V
3.3 Nominal Voltage 3.60V
3.4 Charging Method CC-CV (constant voltage with limited current)
3.5 Charging Current Standard charge: 1,700mA
For cycle life: 1,020mA
3.6 Charging Time Standard charge: 4 hours
3.7 Max. Charge Current 2,000mA (not for cycle life)
3.8 Max. Discharge Current 8,000mA (for continuous discharge)
13,000mA (not for continuous discharge)
3.9 Discharge Cut-off Voltage 2.65V
3.10 Cell Weight 50 g max
3.11 Cell Dimension Height: Max. 65.25 mm
Diameter: Max. Ø 18.55 mm
3.12 Operating Temperature (Cell Surface Temperature) Charge : 0 to 45°C
Discharge : -10 to 60°C
3.13 Storage Temperature 1 year : -20~25°C (1*)
3 months : -20~45°C (1*)
1 month : -20~60°C (1*)
